Analog Outputs

PreviousAnalog InputsNextDigital Inputs

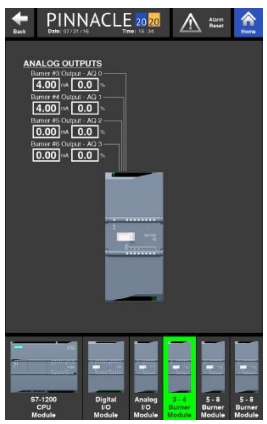

The fourth selection at the bottom of the page is another I/O module, allowing for 4 analog outputs.

4 Analog Outputs

I/O
Name
Description

AQ0

Burner Control Signal 3

This is an analog output used to control the opening of the gas control valve for burner #3.

AQ1

Burner Control Signal 4

This is an analog output used to control the opening of the gas control valve for burner #4.

AQ2

Burner Control Signal 5

This is an analog output used to control the opening of the gas control valve for burner #5.

AQ3

Burner Control Signal 6

This is an analog output used to control the opening of the gas control valve for burner #6.
