  1. Pinnacle 20|20 Controls
  2. Troubleshooting
  3. PLC I/O Modules

Analog Inputs / Outputs

PreviousDigital InputsNextSafety Circuit

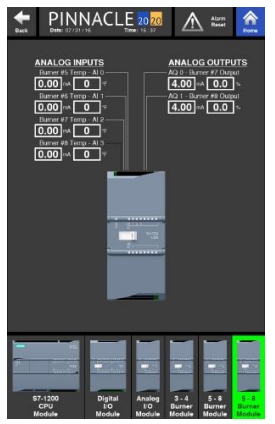

The sixth and final selection at the bottom of the page is another I/O module, allowing for 4 analog inputs and 2 analog outputs.

4 Analog Inputs

I/O
Name
Description

AI0

Burner #5 Temp

Indicates the plenum temperature from plenum 5 RTD.

AI1

Burner #6 Temp

Indicates the plenum temperature from plenum 6 RTD.

AI2

Burner #7 Temp

Indicates the plenum temperature from plenum 7 RTD.

AI3

Burner #8 Temp

Indicates the plenum temperature from plenum 8 RTD.

2 Analog Outputs

I/O
Name
Description

AQ0

Burner #7 Output

This is an analog output used to control the opening of the gas control valve for burner #7.

AQ1

Burner #8 Output

This is an analog output used to control the opening of the gas control valve for burner #8.
