  1. Pinnacle 20|20 Controls
  2. System Settings

Overview

PreviousSystem SettingsNextFan Settings

Last updated 3 months ago

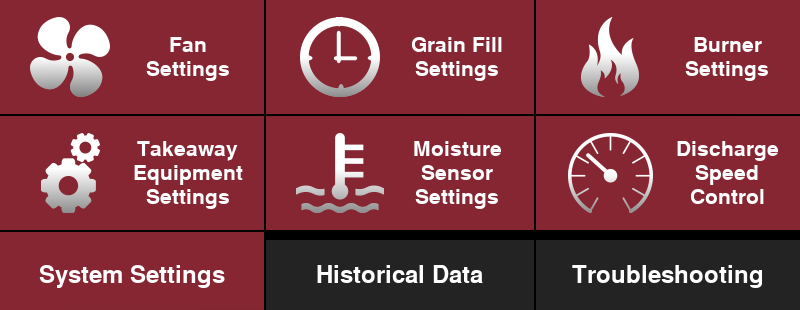

At the bottom of the Pinnacle 20|20 Home page, there are 3 tabs: System Settings, Historical Data, and Troubleshooting. Pressing any of these 3 tabs will cause the tab to turn red and a different set of options, shown as red tiles, to appear. These options will change if a different tab is selected. The Pinnacle 20|20 control system has features that are customizable with several settings that can be changed as necessary. The System Settings tab are where these customizable features can be found. These features will be explained in detail as well as how to properly set them.
