Analog Inputs

PreviousDigital Inputs / OutputsNextAnalog Outputs

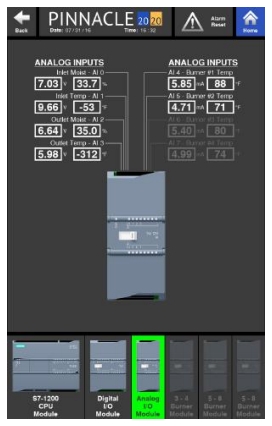

The next selection at the bottom of the page is an I/O module, allowing up to 8 analog inputs.

8 Analog Inputs

I/O
Name
Description

AI0

Inlet Moist

Indicates the moisture of the grain flowing across the infeed moisture sensor.

AI1

Inlet Temp

Indicates the temperature of the grain flowing across the infeed moisture sensor.

AI2

Outlet Moist

Indicates the moisture of the grain flowing across the discharge moisture sensor.

AI3

Outlet Temp

Indicates the temperature of the grain flowing across the discharge moisture sensor.

AI4

Burner #1 Temp

Indicates the plenum temperature from plenum 1 RTD.

AI5

Burner #2 Temp

Indicates the plenum temperature from plenum 2 RTD.

AI6

Burner #3 Temp

Indicates the plenum temperature from plenum 3 RTD.

AI7

Burner #4 Temp

Indicates the plenum temperature from plenum 4 RTD.
